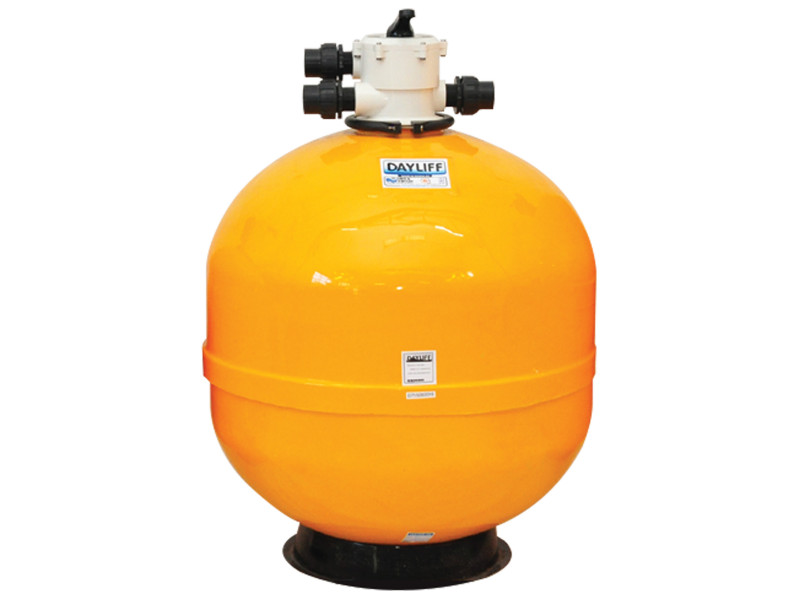

DX600 Sand filter

Operating Parameters
Model DX600
Rate Flow (m3/hr) 10
Pump Options - Type Leader, SPP 75M
Pump Options - Power, kW 0.5
Pump Options - Quality QP4
Pump Options - Power, kW 0.75
Pool Capacity (litres) - Light Use 140000
Pool Capacity (litres) - Normal Use 115000
Pool Capacity (litres) - Heavy Use 85000
Recommended Piping Size (Suction) 2"
Recommended Piping Size (Delivery) 1.5"
Dimensions & Weights
Model DX600
Filter Area 0.3 sq. metres
Dimension(mm) H 980
Dimension(mm) D 620
MPV Valve Size 1 1/2"
Pressure (Bar) - Test 4.5
Pressure (Bar) - Working 3
Weight (kg) - Net 15
Weight (kg) - Gross 250
